Dört motorlu elektronik konumlandırma ve 250 kg taşıma kapasitesiyle jinekolojik muayene için hijyenik, hassas bir platform.
Gynécologie
Table d’examen gynécologique (4 moteurs) JX-03
Four motorized axes and a 250 kg safe working load deliver precise, hygienic positioning for gynecological examinations.
70 cmWidth (with Bumpers)
131 cmLength (with Bumpers)
69 cmMin. Height
94 cmMax. Height
Certifié TSE
Sous garantie
Livraison rapide
Assistance technique

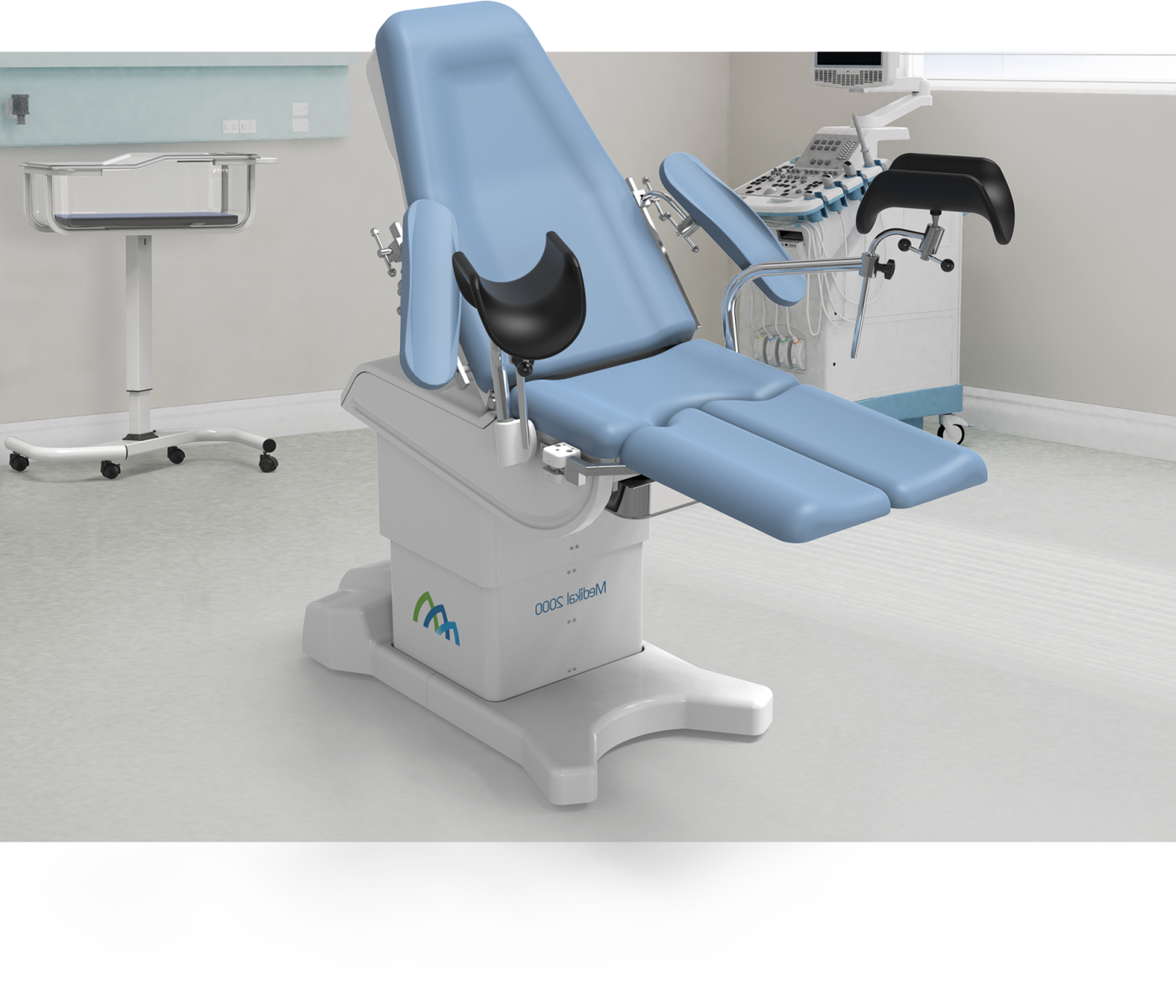

The JX-03 gynecology examination table features a four-motor system that lets the clinician electronically control headrest, height, Trendelenburg, reverse Trendelenburg, footrest and calf-support positions directly from the hand control. Motors and control box carry a minimum IPX4 rating for reliable clinical performance, while an integrated battery ensures uninterrupted operation.
Nano-ceramic coated, electrostatic powder-coated metalwork combined with a fully ABS-plastic clad chassis creates an easy-to-clean, hygienic surface. Chrome-nickel plated accessories resist corrosion, and the removable waste tray and adjustable calf support streamline daily workflow.
With a soft, easy-to-clean polyurethane mattress surface, a 250 kg safe working load and the ability to be fixed to the floor, the JX-03 brings together patient comfort and stability in a single platform.
Caractéristiques générales
- Nano-ceramic coated, electrostatic powder-coated metal parts
- Motors and control box with minimum IPX4 protection

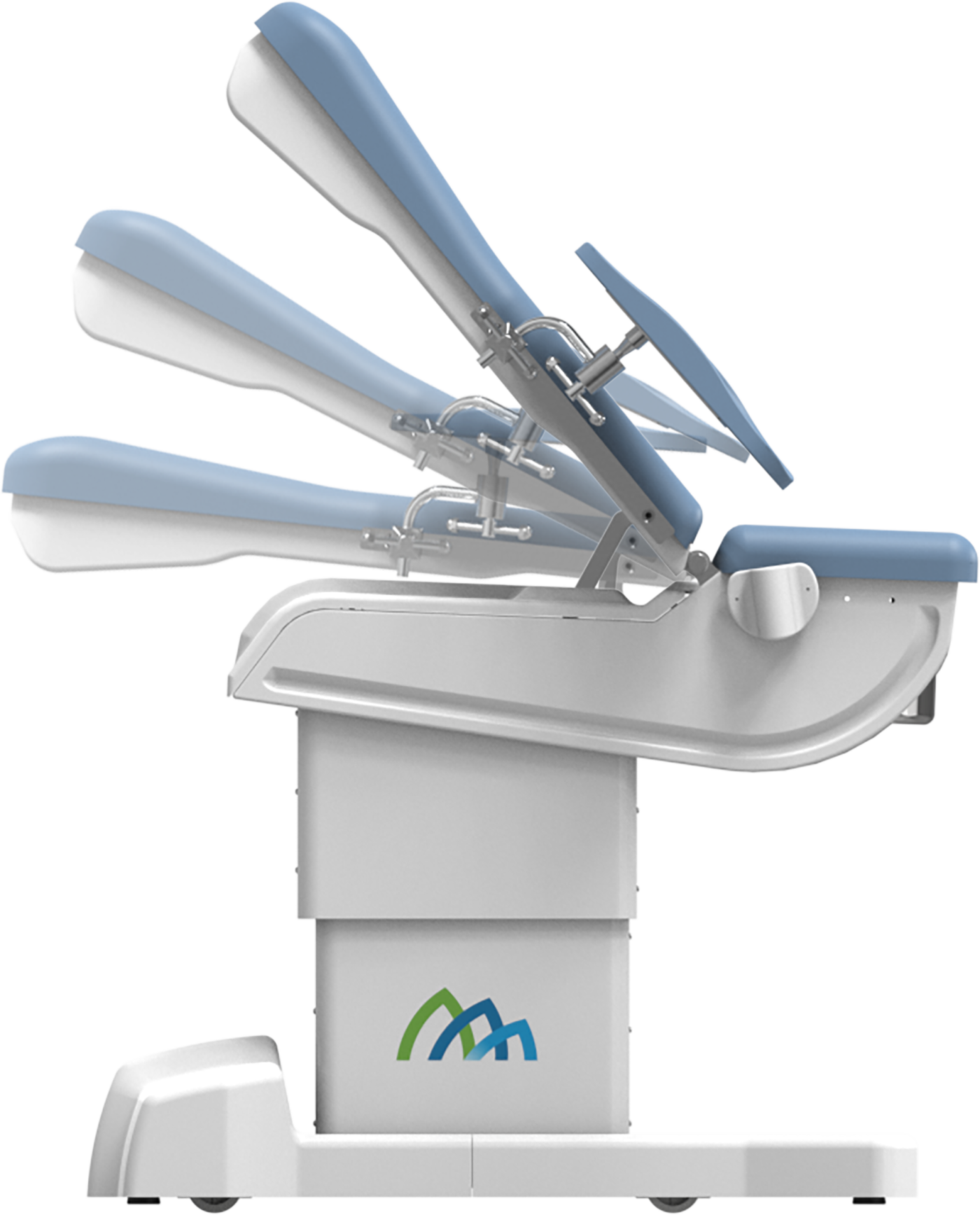

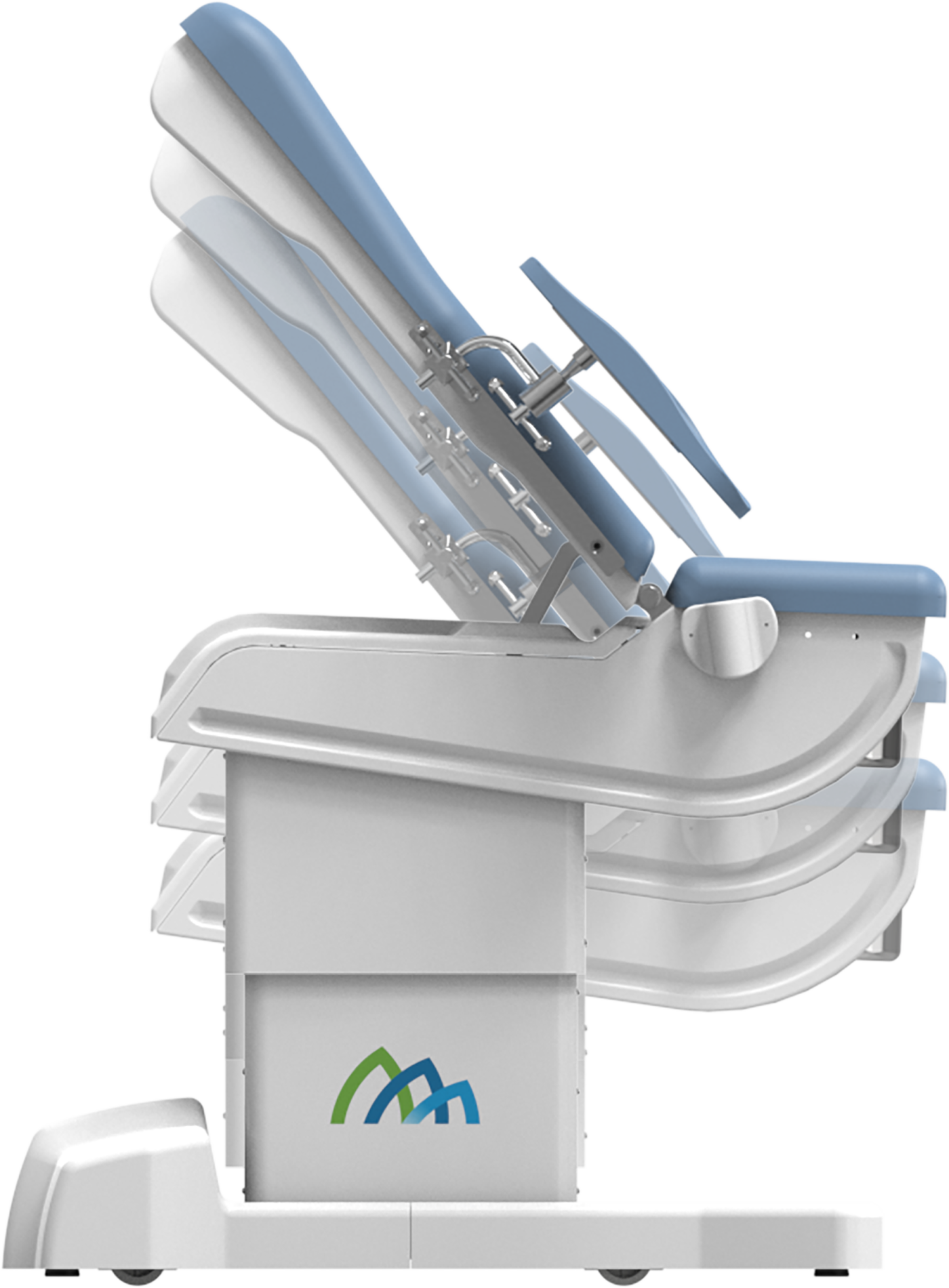

- Head section, height, Trendelenburg, reverse Trendelenburg, footrest and calf support positions set electrically from the hand control

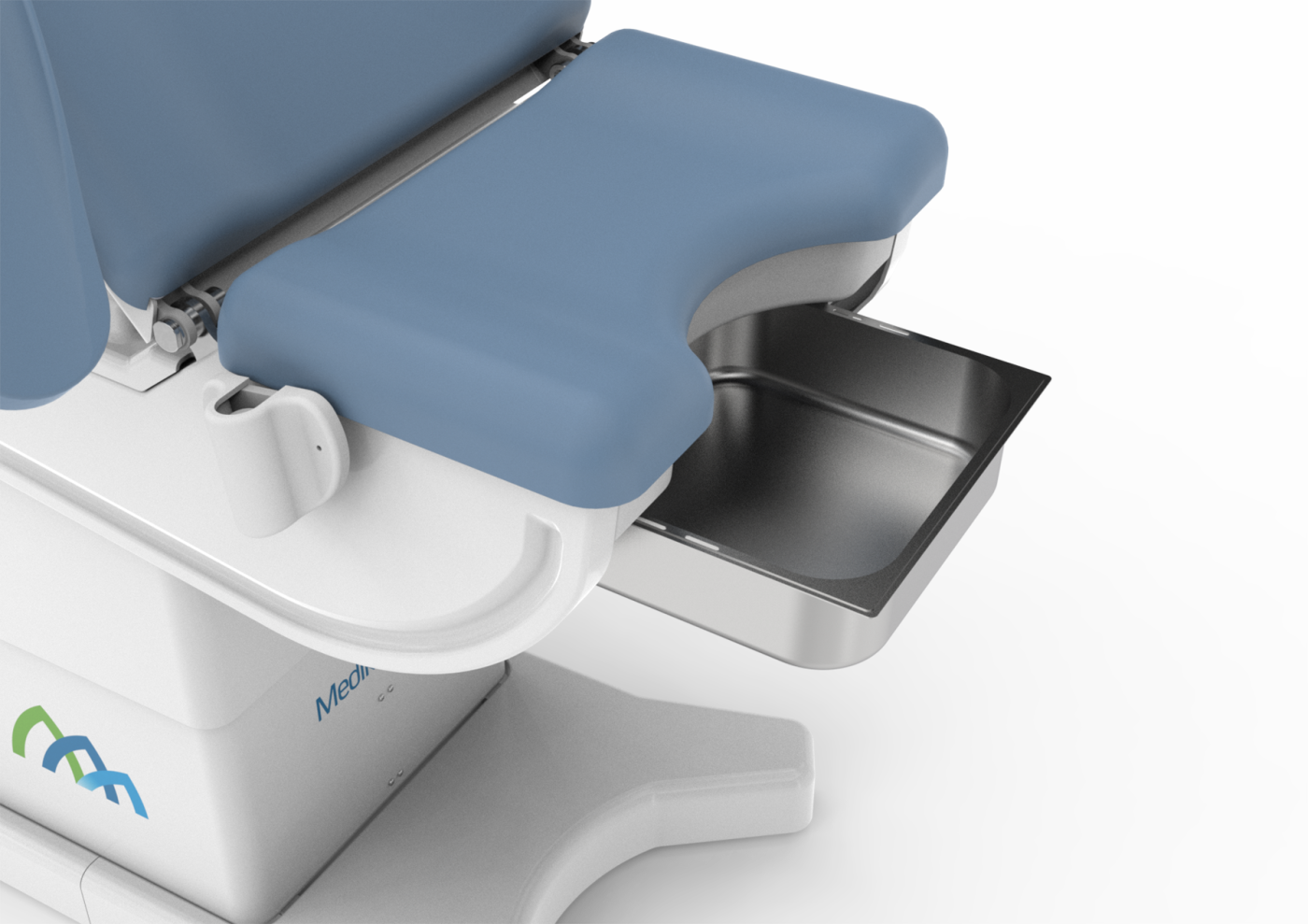

- Easily removable chrome-nickel waste basin
- Corrosion-resistant chrome-nickel plated accessories

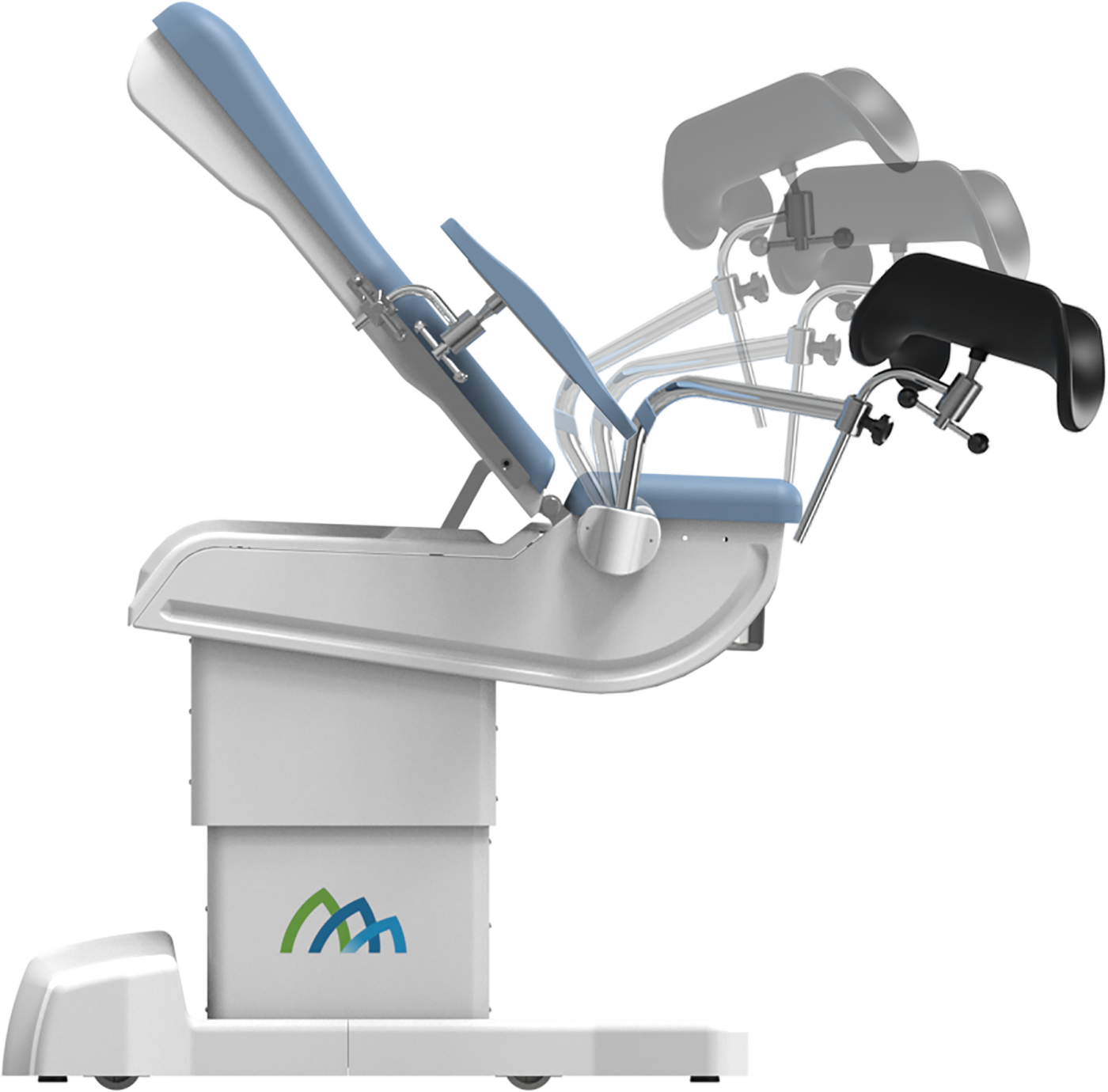

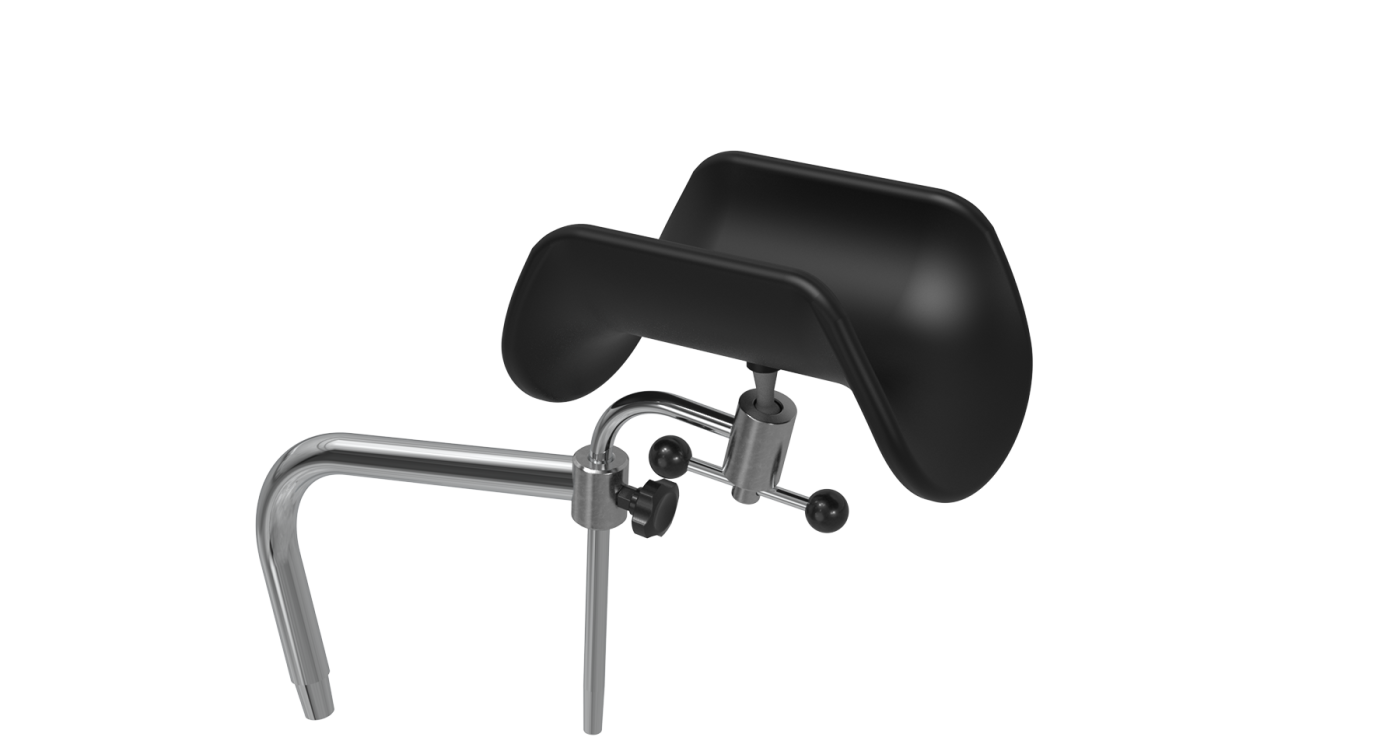

- Adjustable calf support
- Fully ABS plastic covered chassis with a hygienic, easy-to-clean design
- Table can be fixed to the floor
- Paper roll holder
- Battery for uninterrupted operation
- Soft-touch, easy-to-clean polyurethane lying surface
| Width (with Bumpers) | 70 cm |
|---|---|
| Length (with Bumpers) | 131 cm |
| Min. Height | 69 cm |
| Max. Height | 94 cm |
| Backrest Surface | 61x91 cm |
| Seat Surface | 58x36 cm |
|---|---|
| Backrest Angle | 52° |

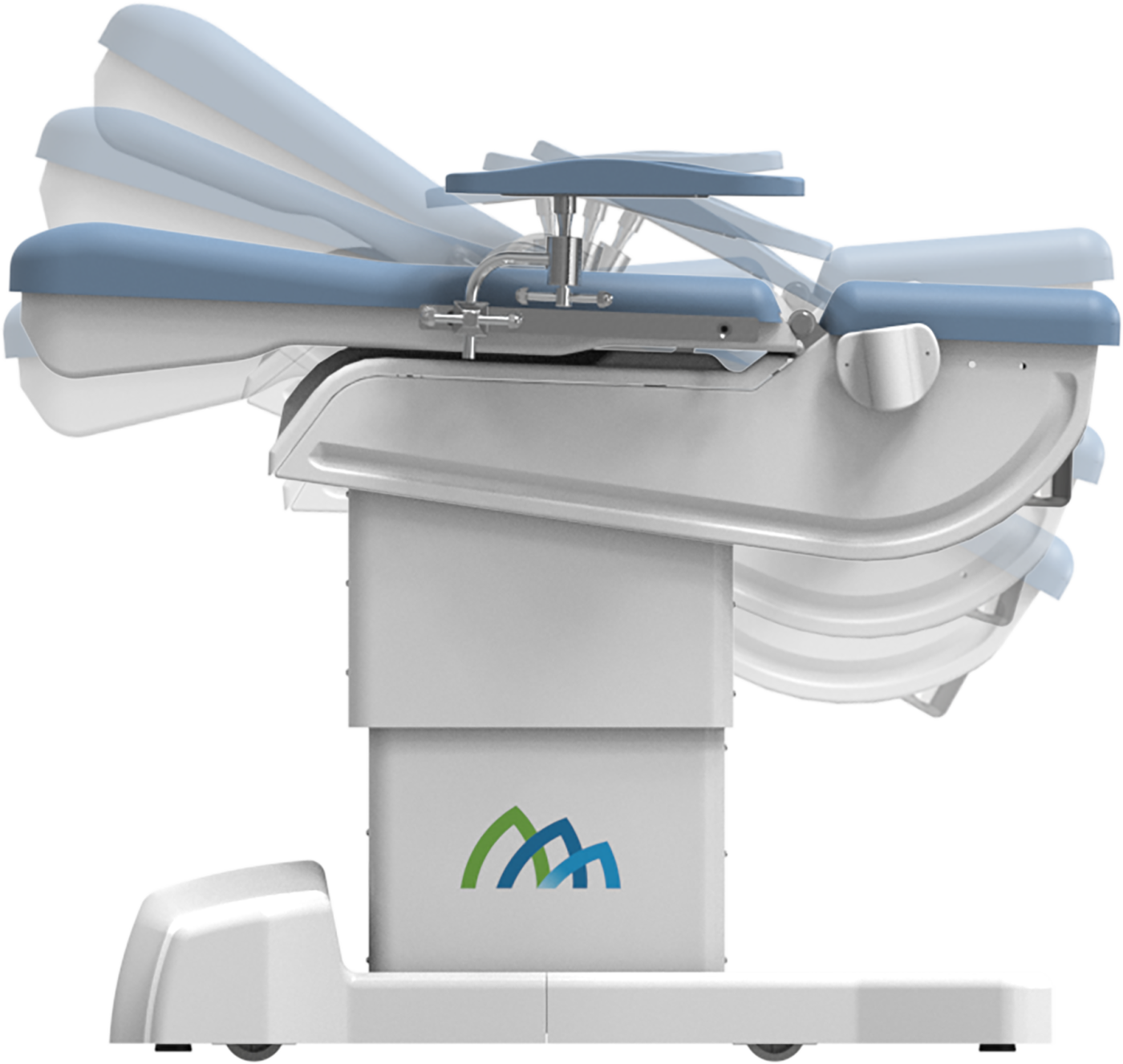

| Trendelenburg Angle | 23° |
| Reverse Trendelenburg Angle | 3° |
| Safe Working Load | 250 kg |
Les équipements ci-dessous sont proposés sur demande, en complément du produit standard.
