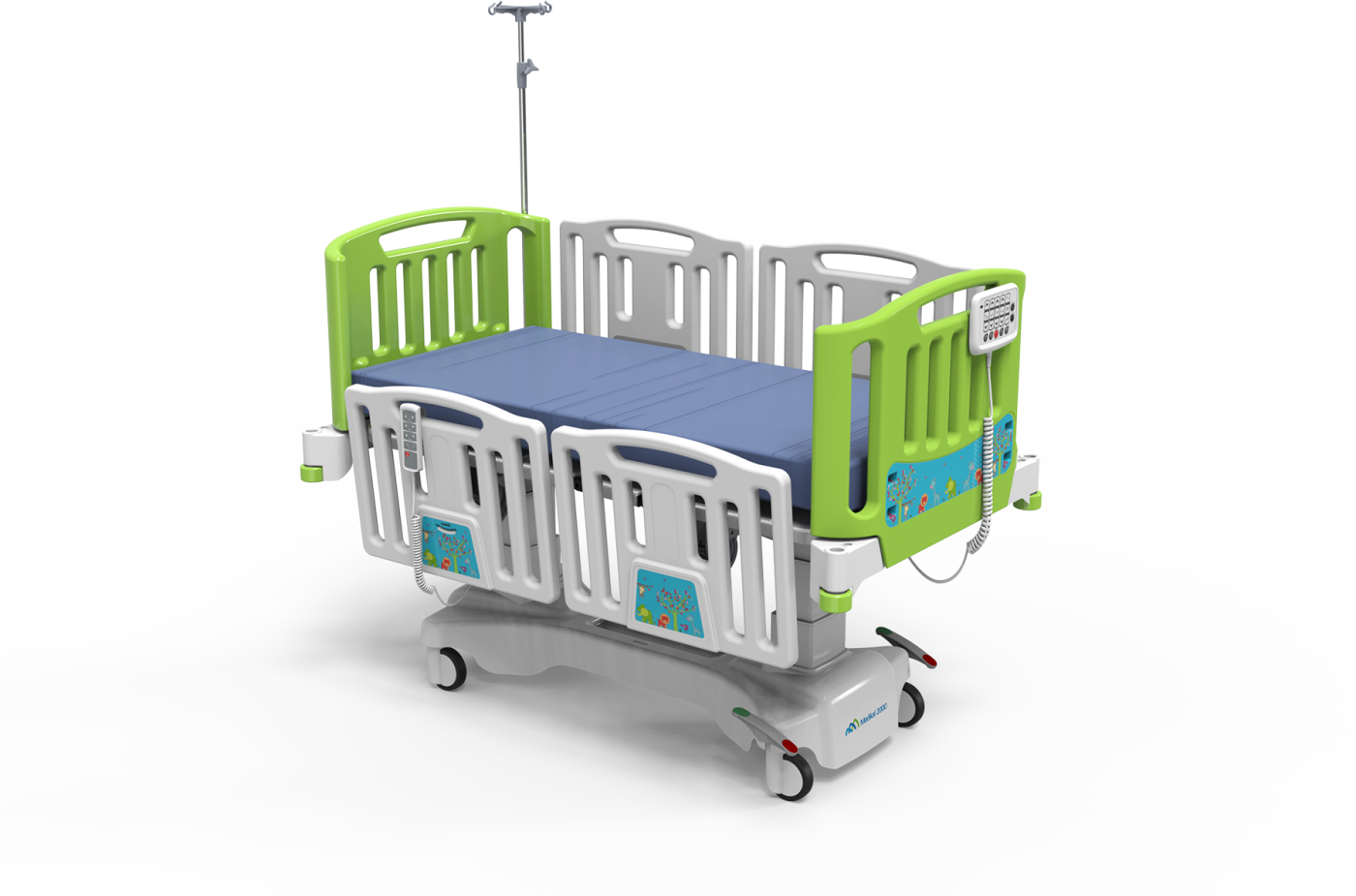

Genel Görünüm
Dört motorlu hareket, kompakt yatma yüzeyi ve dahili bataryayla çocuk hastalara özel güvenli bakım.
Больничные кровати
Педиатрическая кровать (4 мотора) ALARA Y
Four-motor articulation, a compact reclining surface and an integrated battery for safe, dedicated pediatric care.
103,5 cmWidth (with Bumpers)
180 cmLength (with Bumpers)
47 cmMin. Height
77 cmMax. Height
Сертификат TSE
С гарантией
Быстрая доставка
Техподдержка
The ALARA Y is a four-motor pediatric hospital bed powered by quiet linear actuators with a minimum IPX4 rating. Backrest, leg, height, Trendelenburg and reverse Trendelenburg are managed electronically, while a nurse panel with function locking supports safe operation.
Manual and electronic CPR, polypropylene side rails, detachable head and foot panels and a four-section reclining surface in compact material are scaled for younger patients. A graduated knee mechanism, angle indicators on the side rails and 150 mm central-locking castors deliver controlled, secure movement.
An integrated battery, IV pole, urine bag holder, nano-ceramic-coated powder-coated metalwork and a 78x160x12 cm 28-density mattress complete a pediatric care solution rated for a 250 kg safe working load.
Общие характеристики
- Linear motors with minimum IPX4 protection for silent operation
- Hand control
- Nurse control panel with function lock
- Electric backrest, legrest, height, Trendelenburg and reverse Trendelenburg movement
- Manual and electronic CPR
- Polypropylene (PP) side rails with detachable head and foot panels
- Four-section lying surface made of compact laminate
- Graduated knee adjustment mechanism

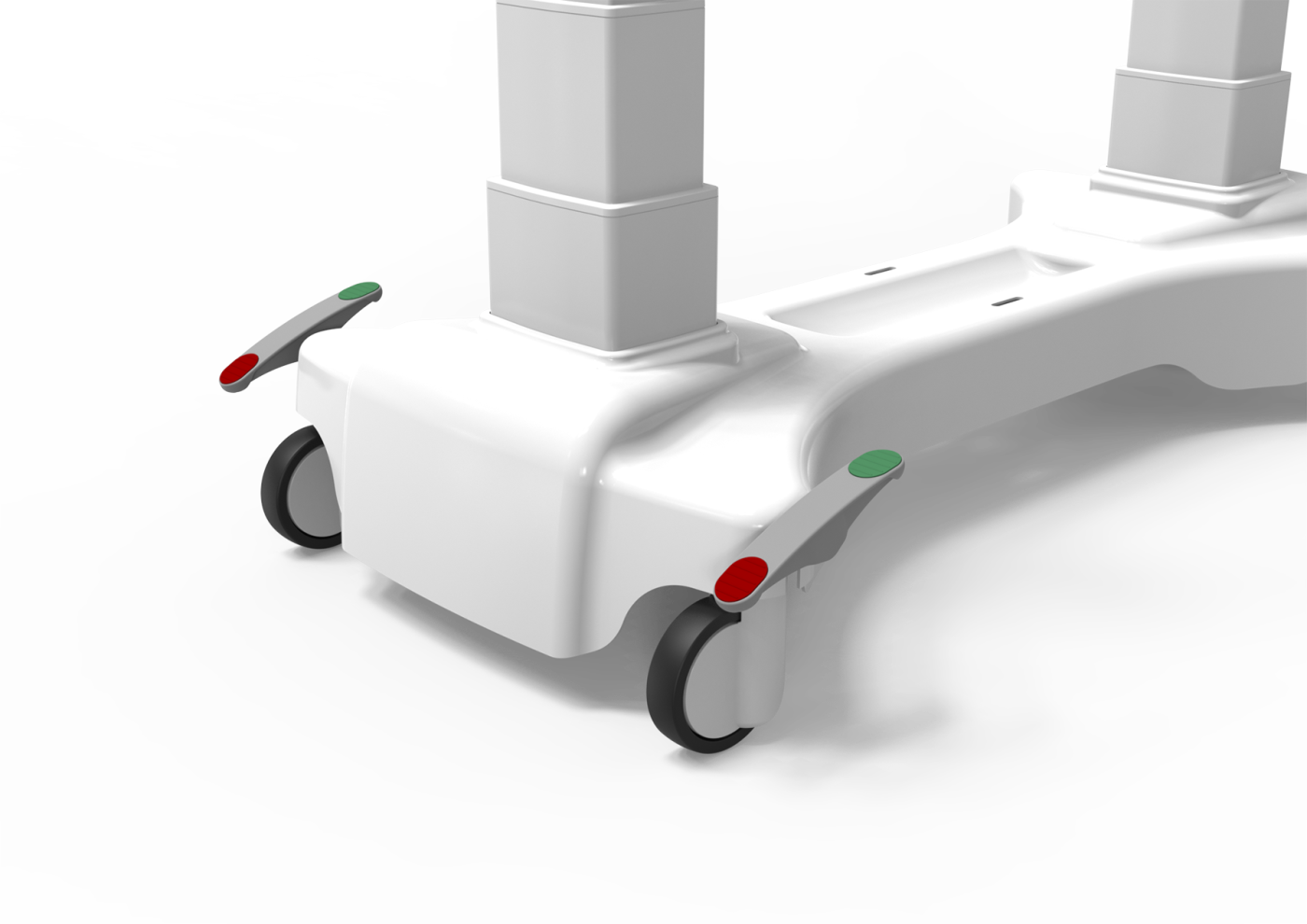

- 360° swivel castors with central locking (150 mm)
- Protective plastic bumpers
- Urine bag holder
- Accessory sockets
- Height-adjustable IV pole
- Nano-ceramic coated, electrostatic powder-coated metal parts
- Angle indicator on the side rails
- 78x160x12 cm, 28 density mattress
- Battery
| Width (with Bumpers) | 103,5 cm |
|---|---|
| Length (with Bumpers) | 180 cm |
| Min. Height | 47 cm |
| Max. Height | 77 cm |
| Mattress Platform | 78x162 cm |
| Backrest Angle | 70° |
|---|---|
| Legrest Angle | 30° |
| Trendelenburg Angle | 12° |
| Reverse Trendelenburg Angle | 12° |
| Safe Working Load | 250 kg |
Положения
Перечисленное ниже оснащение поставляется по запросу в дополнение к стандартной комплектации.
- Colour-customisable head panel and side rail inserts
- Lockable head and foot panels
- Patient chart holder
- Defibrillator tray
